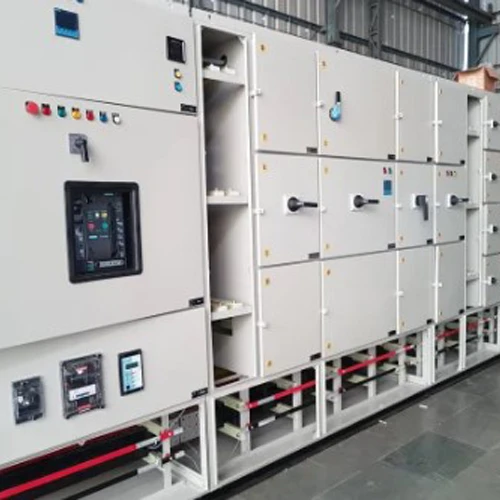

Electrical Panel Board Manufacturing Description

Electrical panel boards, also known as distribution boards, are essential components in electrical systems used to control, distribute, and protect electrical circuits in commercial, residential, and industrial applications. These panel boards house the electrical circuits that supply power to various parts of a building or industrial facility. The manufacturing process involves various stages of design, fabrication, assembly, testing, and quality assurance to ensure that the panels are safe, reliable, and meet regulatory standards.

Here's a detailed description of the electrical panel board manufacturing process:

1. Design and Engineering:

The first stage in the manufacturing process is the design of the electrical panel board. This involves:

• Load Calculation and Sizing: Engineers calculate the electrical load requirements of the building or facility to determine the panel's specifications. This includes the number of circuits, the voltage and current ratings, and the type of electrical protection needed.

• Circuit Layout: The layout of the individual circuit breakers or fuses, busbars, and other electrical components are designed, ensuring that the panel board meets the required standards and safety protocols (such as IEC, UL, or local standards).

• Enclosure Design: The physical enclosure of the panel board is designed, which can be made from steel, stainless steel, or other materials depending on the environment (indoor or outdoor, corrosive conditions, etc.).

• Automation and Control Features: In modern systems, integration of automation, control modules, and communication systems (such as SCADA or IoT modules) may be included, allowing for remote monitoring and control of the electrical panel.

2. Material Sourcing:

Once the design is finalized, the required raw materials are sourced. Common materials used include:

• Metal for Enclosures: Galvanized steel, mild steel, stainless steel, or aluminum are typically used for constructing the panel box.

• Busbars: Copper or aluminum busbars are used for current distribution within the panel board.

• Circuit Breakers and Fuses: These are selected based on the rated capacity, and can be miniature circuit breakers (MCBs), moulded case circuit breakers (MCCBs), or air circuit breakers (ACBs).

• Terminal Blocks: These are used for wiring connections inside the panel.

• Wires and Cables: Insulated cables of various ratings are used to connect the panel to external circuits.

• Other Components: Relays, meters, switches, and other protection devices may be sourced depending on the design specifications.

3. Fabrication of Enclosures:

The fabrication process begins with the enclosure:

• Cutting and Shaping: Sheets of metal are cut and shaped using CNC machines or laser cutting technologies to form the body of the panel board.

• Bending and Forming: Panels are bent to the required dimensions to create compartments for the electrical components. This is done using hydraulic press brakes or other bending machinery.

• Drilling and Punching: Holes are drilled in the panel for mounting components like circuit breakers, busbars, and cable entries.

• Surface Treatment: After forming, the enclosures are cleaned, degreased, and coated (powder coating or painting) to prevent rust and improve aesthetic appearance.

4. Component Assembly:

Once the enclosure is ready, the next step is to assemble the electrical components:

• Busbars Installation: Copper or aluminum busbars are mounted inside the panel to distribute power to different circuits. These are typically connected to the main input terminal.

• Circuit Breakers and Protection Devices: Circuit breakers or fuses are installed in the panel and connected to the busbars. The correct type of protection device is selected based on the load and application.

• Wiring and Termination: Wiring is done to interconnect the components in the panel, ensuring proper voltage and current flow. The wires are neatly organized, and the insulation is stripped and terminated at the correct points.

• Control and Measurement Equipment: If the panel includes automation or control functions, components such as relays, controllers, meters, and switches are installed and wired.

• Terminal Blocks and Labels: Terminal blocks are installed to facilitate easy and safe connections of external wires. Labels are applied to identify circuits and components for safety and ease of maintenance.

5. Testing and Quality Control:

After assembly, rigorous testing is performed to ensure the panel meets safety standards and operates as intended:

• Visual Inspection: The panel is checked for any visible defects, such as loose components, poor wiring, or damage.

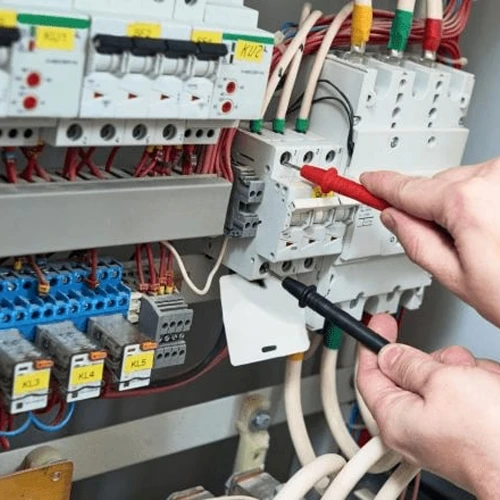

• Electrical Testing: The panel undergoes various electrical tests such as insulation resistance, continuity, and dielectric strength tests to ensure it can safely handle the specified electrical loads.

• Functional Testing: The panel’s functionality is verified, ensuring all circuits operate as intended, and that circuit breakers trip when overloaded.

• High-Voltage Testing: This ensures that the panel can withstand higher-than-normal voltages without failure.

• Compliance Check: The panel is verified against relevant safety standards and certifications (such as UL, IEC, ISO, or local regulations).

6. Packaging and Shipping:

Once testing is complete and the electrical panel board passes all inspections:

• Final Inspection: A final inspection is carried out to ensure all components are installed properly, labels are correct, and the panel is in perfect working condition.

• Packaging: The panel is carefully packaged to avoid damage during transportation. This may involve wrapping it in protective materials and securing it in sturdy wooden or metal crates.

• Shipping: The panels are shipped to the customer’s location, either to a construction site or a warehouse for later installation.

7. Installation and Commissioning (Post-Manufacturing Phase):

After shipping, the electrical panel board is installed at its designated location:

• Mounting: The panel is securely mounted to a wall or a free-standing frame, and all external wiring is connected to the terminals.

• Commissioning: The system is tested on-site to ensure it functions correctly within the specific environment. Any adjustments or fine-tuning are made to ensure optimal performance.

• End User Training: In some cases, manufacturers provide training to the end user on how to safely operate and maintain the panel board.
